VENID

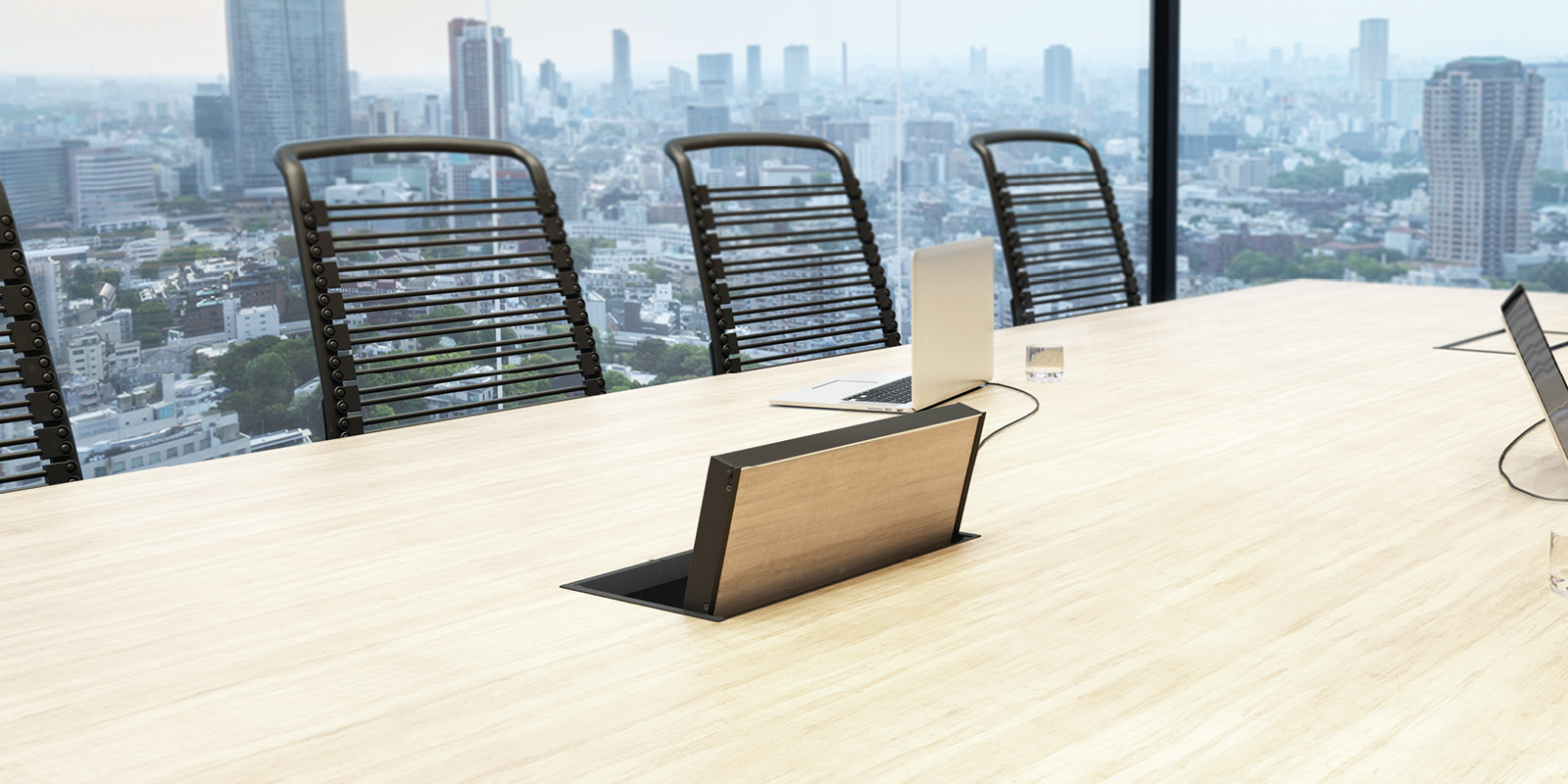

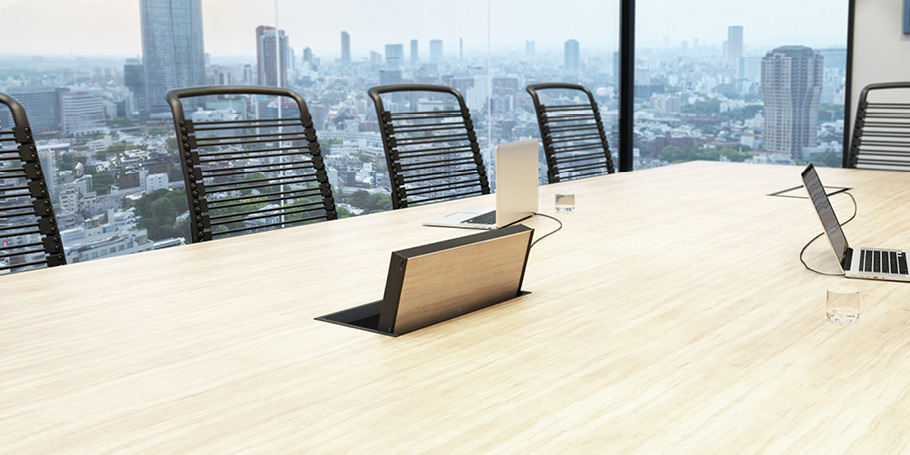

As part of a modern work and conference environment, the desk connection panel VENID offers both exceptional design and high functionality.

Visual harmony

The original tabletop material can be integrated quickly and easily into the mounting frame, so the tabletop and connection panel form a harmonious unit.

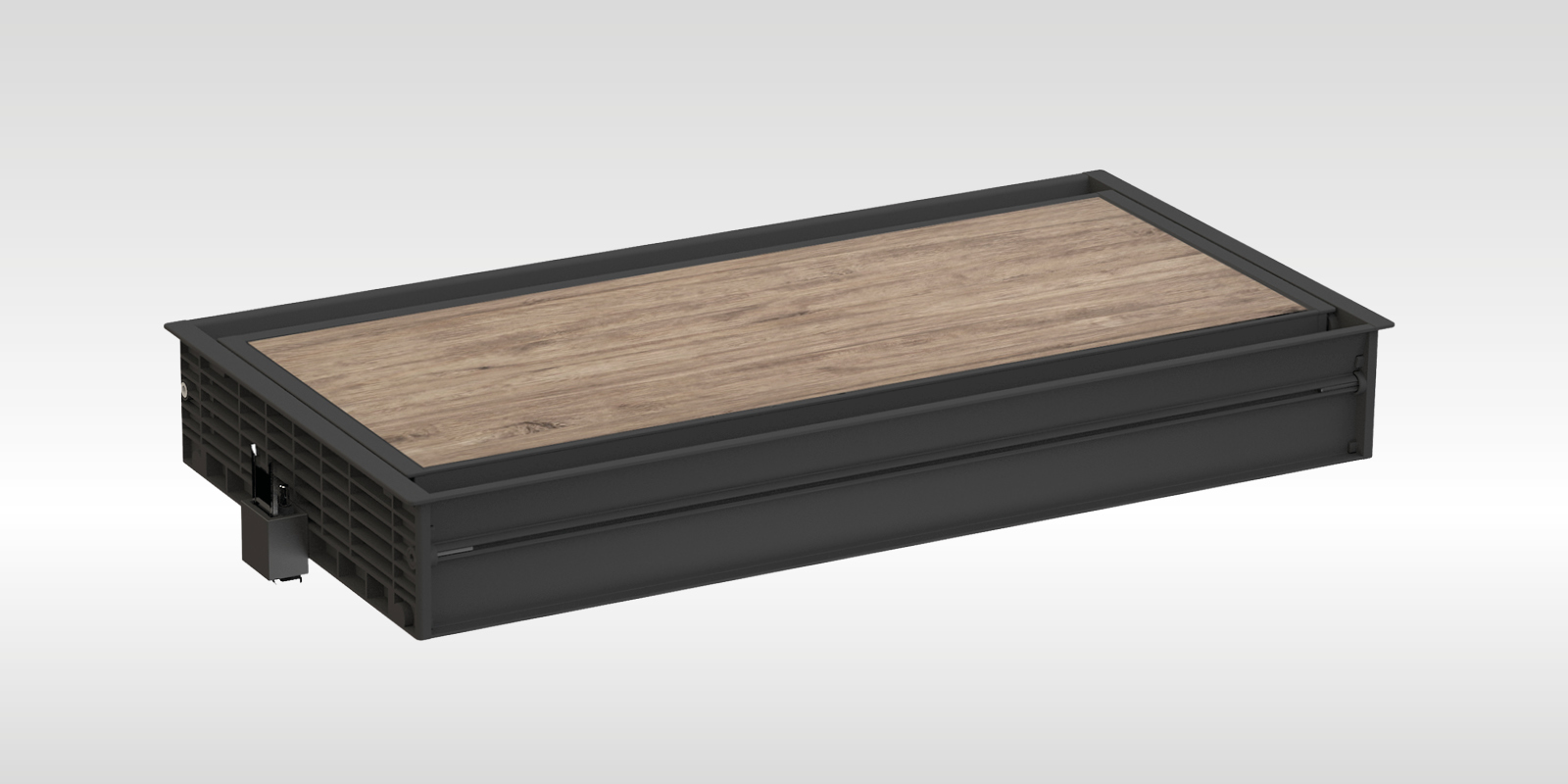

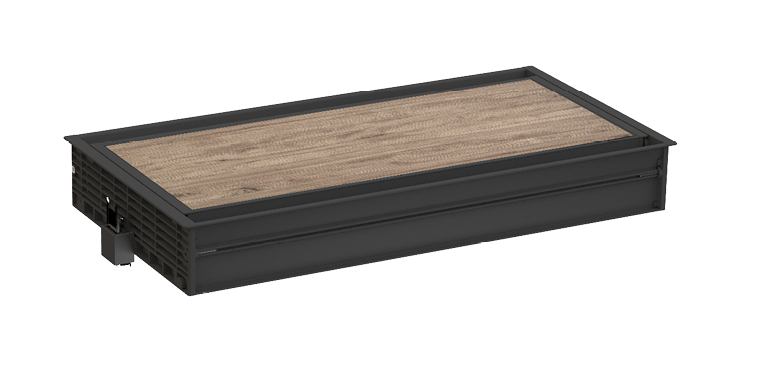

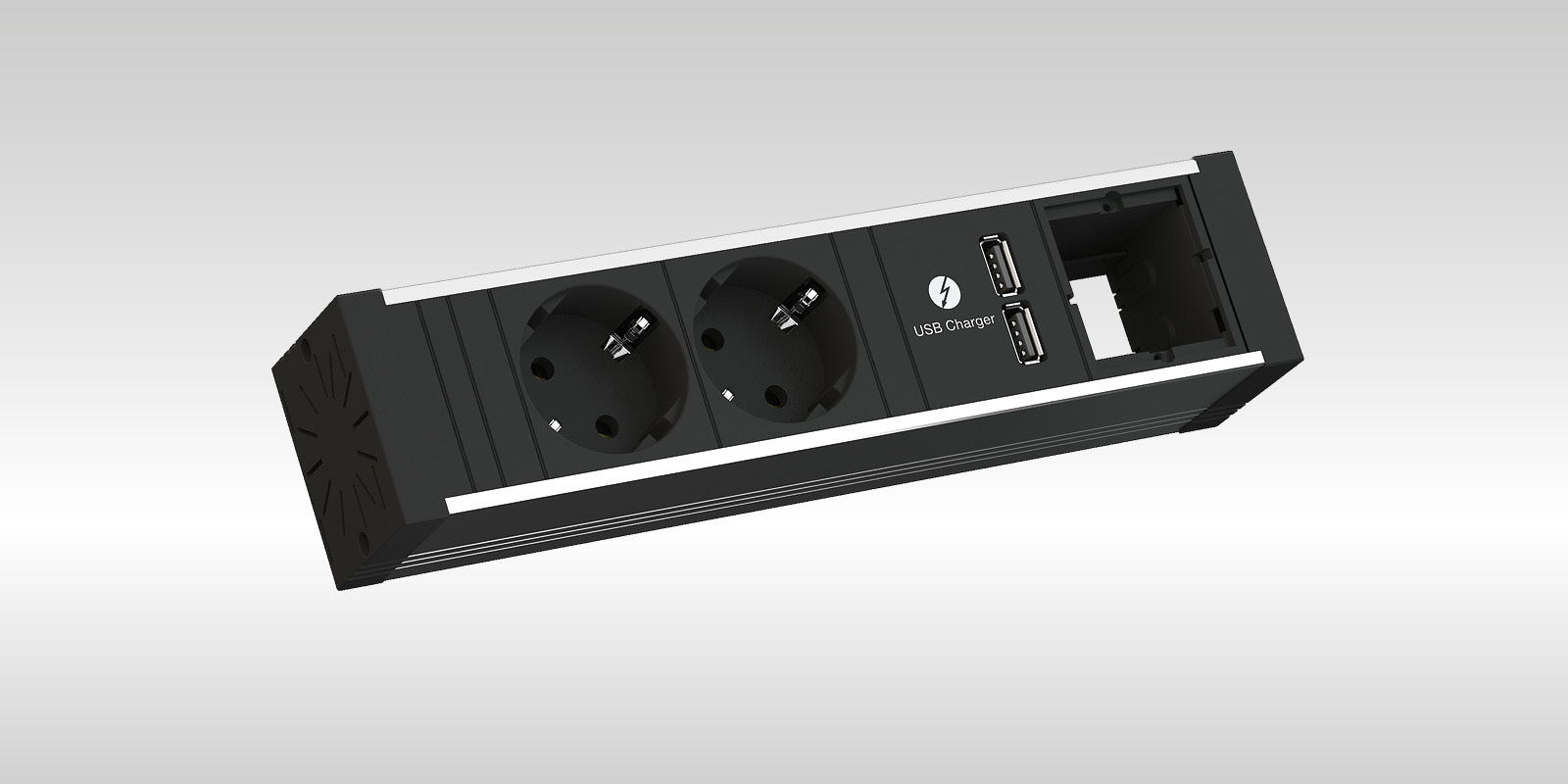

Perfectly integrated into the surface, VENID not only looks elegant but also offers a practical benefit: used cables can be stowed away conveniently in the tray. The cover, which can be folded open in either direction, is easy to operate and leaves space for the cables to be routed at the sides. Two power strips can be integrated into the VENID tray and equipped individually.



VENID is suitable for table thicknesses of 14-25 mm.

icon

Harmonious surface

icon

Can be operated from either side

icon

Practical benefit of cable storage

icon

Flexible equipment options

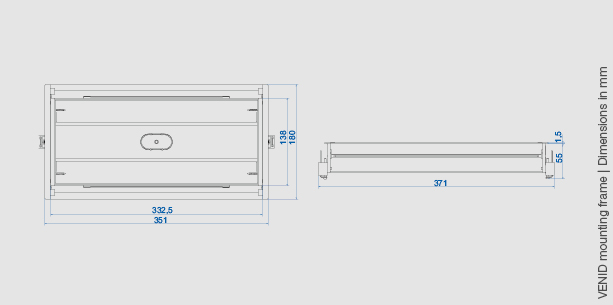

Dimensions:

Tray: 334 x 173 x 79 mm
Mounting Drame : 371 x 180 x 57 mm

Material:

Mounting Frame: Plastic, Anodised Aluminium
Tray: Sheet Steel

Installation Depth

Mounting depth of frame
without mounting clips:
45 mm
Mounting depth of frame
with tray and power strip:
155 mm

Socket Orientation:

0-45°

Black

Mounting & operation

VENID, 935.000; 935.100; 936.007; 936.008; 936.009; 936.010; 936.015; 936.012; 936.011; 936.003; 936.004; 936.013; 936.001; 936.002; 936.014; 936.006; 936.005
